Feature

Drive Motor

Power(P1)

Y2 Induction Motor, 0.37Kw~30Kw

Voltage Scope(V)

110V~660V or make specially according to clients’requirement.

Phase

Single(under 3Kw) or Three

Pole

2 or 4 or 6 or 8 or 10

Motor Speed(N1)

Relys on motor pole:600r/min~3000r/min

Frequency

50Hz or 60Hz or 50/60Hz

Insulation Class

B or F

IP

IP54 or IP55 or make specially according to clients’ requirement.

Duty

S1

Cooling Type

IC0141(Fan Self-cooling) or Blower

Terminal Box

0º or 90º or 180º or 270º,any position is allowed

Link Wire

Y(P1≤3Kw),  Δ(P1>3Kw)

Operation Temperature

Normally:-15℃~ 40℃.If end-user’s special requirement,we’ll make it specially.

Speed Reducer

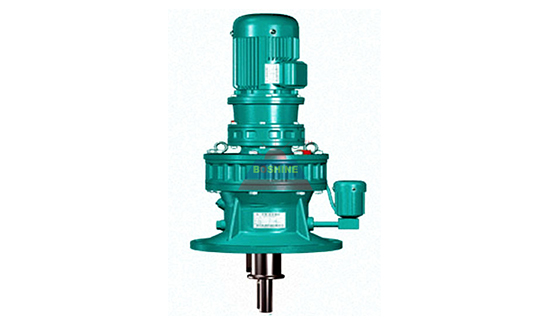

X93 Mixer of Cycloid Speed Reducer Motor

Connect Method

Direct type, if end-user is convenient to replace motor, please consider to add extra motor adapter.

Ratio

1/17*1/23~1/23*1/35

Mixer Stere

0.01~20CBM

Speciality

2 output shafts: one CW rotates,the other CCW rotates at the same time

Output Speed(N2)

Depends on motor pole: N1/ratio(i)

Service Factor(Fs)

1.2~4.0

Mount Type

Vertical installation
