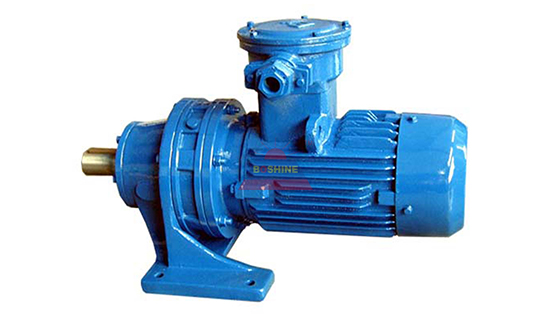

Feature

Drive Motor

Power(P1)

YB2 Explosion-proof Motor, 0.55Kw~22Kw

Voltage Scope(V)

110V~660V or make specially according to clients’requirement.

Phase

Single(under 3Kw) or Three

Pole

2 or 4 or 6 or 8 or 10

Motor Speed(N1)

Relys on motor pole:600r/min~3000r/min

Frequency

50Hz or 60Hz or 50/60Hz

Insulation Class

B or F

IP

IP54 or IP55 or make specially according to clients’ requirement.

Duty

S1

Cooling Type

IC0141(Fan Self-cooling) or Blower

Terminal Box

0º or 90º or 180º or 270º,any position is allowed

Link Wire

Y(P1≤3Kw),  Δ(P1>3Kw)

Operation Temperature

Normally:-15℃~ 40℃.If end-user’s special requirement,we’ll make it specially.

Speed Reducer

X/B Cycloid Pin Wheel Speed Reducer

Connect Method

Direct type, if end-user is convenient to replace motor, please consider to add extra motor adapter.

Ratio Scope(i)

Single stage

11   17   23   29   35   43   59   71   87

Double stage

121~5133

Rated Torque(N.m)

150N.m~12000N.m

Output Speed(N2)

Depends on motor pole: N1/ratio(i)

Service Factor(Fs)

1.2~4.0

Mount Type

Horizontal: foot mounted
