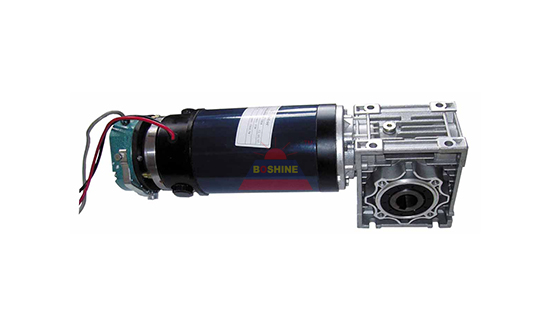

Worm Gearbox DC Motor Feature

Drive Motor

Power(P1)

DC Motor, 0.06Kw~7.5Kw

Voltage Scope(V)

12V~220V or make specially according to clients’requirement.

Phase

Single(under 3Kw) or Three

Pole

2 or 4 or 6 or 8 or 10

Motor Speed(N1)

Relys on motor pole:600r/min~3000r/min

Frequency

50Hz or 60Hz or 50/60Hz

Insulation Class

B or F

IP

IP54 or IP55 or make specially according to clients’ requirement.

Duty

S1

Cooling Type

IC0141(Fan Self-cooling) or Blower

Terminal Box

0º or 90º or 180º or 270º,any position is allowed

Link Wire

Y(P1≤3Kw),  Δ(P1>3Kw)

Operation Temperature

Normally:-15℃~ 40℃.If end-user’s special requirement,we’ll make it specially.

Connect Method

IEC motor adapter

Ratio Scope(i)

7.5~100, if client want bigger ratio, please consider combination type

Rated Torque(N.m)

2.6N.m~1074N.m

Output Speed(N2)

Depends on motor pole: N1/ratio(i), N2=1.5r/min~200r/min

Service Factor(Fs)

1.2~2.0

Mount Type

 Horizontal or vertical is allowed

Installation Direction

Horizontal or Vertical is allowed
