Structure

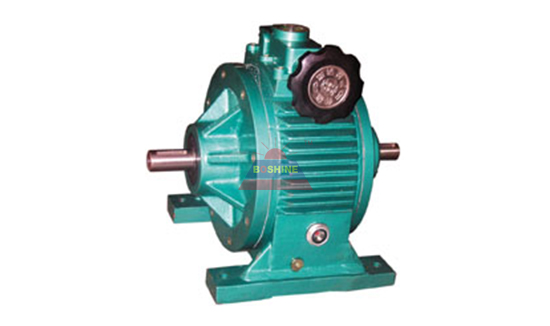

Planetary Stepless Gear(Variable Speed) Reducer

Size

02    04    07    15    22    40    55    75

Connect Method

Solid input shaft,will fit V-belt or Coupling

Output Shaft

Solid(firm) output shaft

Ratio Scope(i)

Stage

Ratio

Variable Speed Scope

0-stage

-----

200~1000RPM

1/2

400~2000RPM

2/3

300~1500RPM

2

100~500RPM

1-stage pinion
(C)

2.5

80~400RPM

3.3

60~300RPM

5

40~200RPM

2-stage pinion
(2C)

8

25~125RPM

11

18~90RPM

13.3

15~75RPM

16.6

12~60RPM

20

10~50RPM

Rated Torque(N.m)

3N.m~2000N.m

Service Factor(Fs)

1.5~4.0

Mount Type

Horizontal (B3)

With foot

Vertical (B5)

With output flange

B35

With foot and output flange
