Feature

Drive Motor

Power(P1)

Y/Y2 Induction Motor, 0.18Kw~7.5Kw

Voltage Scope(V)

110V~660V or make specially according to clients’requirement.

Phase

Single(under 3Kw) or Three

Pole

2 or 4 or 6 or 8 or 10

Motor Speed(N1)

Relys on motor pole:600r/min~3000r/min

Frequency

50Hz or 60Hz or 50/60Hz

Insulation Class

B or F

IP

IP54 or IP55 or make specially according to clients’ requirement.

Duty

S1

Cooling Type

IC0141(Fan Self-cooling) or Blower

Terminal Box

0º or 90º or 180º or 270º,any position is allowed

Link Wire

Y(P1≤3Kw),  Δ(P1>3Kw)

Operation Temperature

Normally:-15℃~ 40℃.If end-user’s special requirement,we’ll make it specially.

Structure

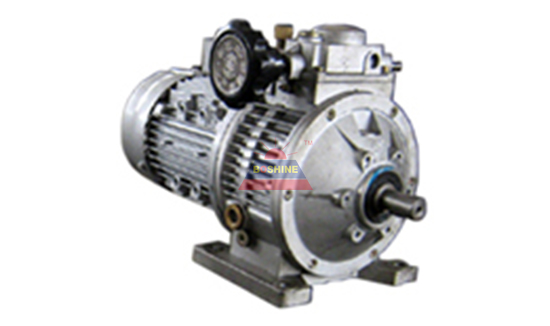

Aluminum frame planetary Stepless Gear(Variable Speed) Reducer Motor

Size

02    04    07    15    22    40    55    75

Connect Method

Connect directly

Output Shaft

Solid(firm) output shaft

Ratio Scope(i)

Stage

Ratio

Variable Speed Scope

0-stage

-----

200~1000RPM

1/2

400~2000RPM

2/3

300~1500RPM

2

100~500RPM

1-stage pinion
(C)

2.5

80~400RPM

3.3

60~300RPM

5

40~200RPM

2-stage pinion
(2C)

8

25~125RPM

11

18~90RPM

13.3

15~75RPM

16.6

12~60RPM

20

10~50RPM

Rated Torque(N.m)

3N.m~2000N.m

Service Factor(Fs)

1.5~4.0

Mount Type

Horizontal (B3)

With foot

Vertical (B5)

With output flange

B35

With foot and output flange
