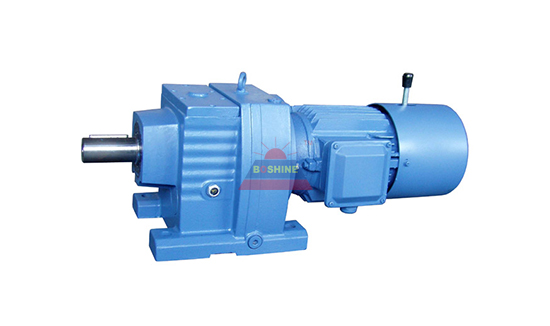

Feature: R series Helical Gearbox Reductor Brake Motor

Drive Motor

Power(P1)

YEJ2 Brake Induction Motor, 0.12Kw~180Kw

Voltage Scope(V)

220/380V or make specially according to clients’requirement.

Phase

Single(under 3Kw) or Three

Pole

2 or 4 or 6 or 8 or 10

Motor Speed(N1)

Relys on motor pole:650r/min~3000r/min

Frequency

50Hz or 60Hz or 50/60Hz

IP

IP54 or IP55 or make specially according to clients’ requirement.

Terminal Box

0º or 90º or 180º or 270º,any position is allowed

Connect Method

Direct type, if client’s convenient to replace motor, please consider to add extra motor adapter.

Ratio Scope(i)

3.2~264, if client want bigger ratio, please consider combination type

Rated Torque(N.m)

72N.m~14800N.m

Output Speed(N2)

Depends on motor pole: N1/ratio(i), N2=0.06r/min~1090r/min

Service Factor(Fs)

1.2~5.0

Mount Type

Foot and shaft mount
