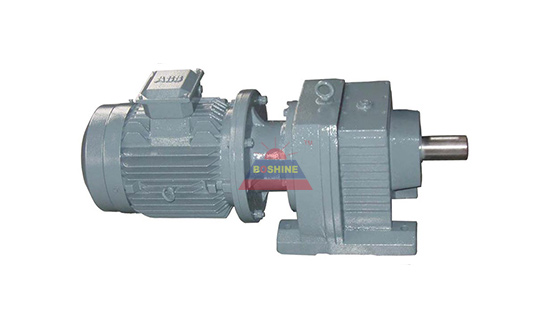

Feature: R series Helical Speed Reducer Gearmotor

Drive Motor

Power(P1)

Y/Y2 Induction Motor, 0.12Kw~180Kw

Voltage Scope(V)

220/380V or make specially according to clients’requirement.

Phase

Single(under 3Kw) or Three

Pole

2 or 4 or 6 or 8 or 10

Motor Speed(N1)

Relys on motor pole:650r/min~3000r/min

Frequency

50Hz or 60Hz or 50/60Hz

IP

IP54 or IP55 or make specially according to clients’ requirement.

Terminal Box

0º or 90º or 180º or 270º,any position is allowed

Connect Method

IEC adapter type, it's very convenient to replace motor for end-user.

Ratio Scope(i)

3.2~264, if client want bigger ratio, please consider combination type

Rated Torque(N.m)

72N.m~14800N.m

Output Speed(N2)

Depends on motor pole: N1/ratio(i), N2=0.06r/min~1090r/min

Service Factor(Fs)

1.2~5.0

Mount Type

Foot and shaft mount
